3-Finger Robotic Arm

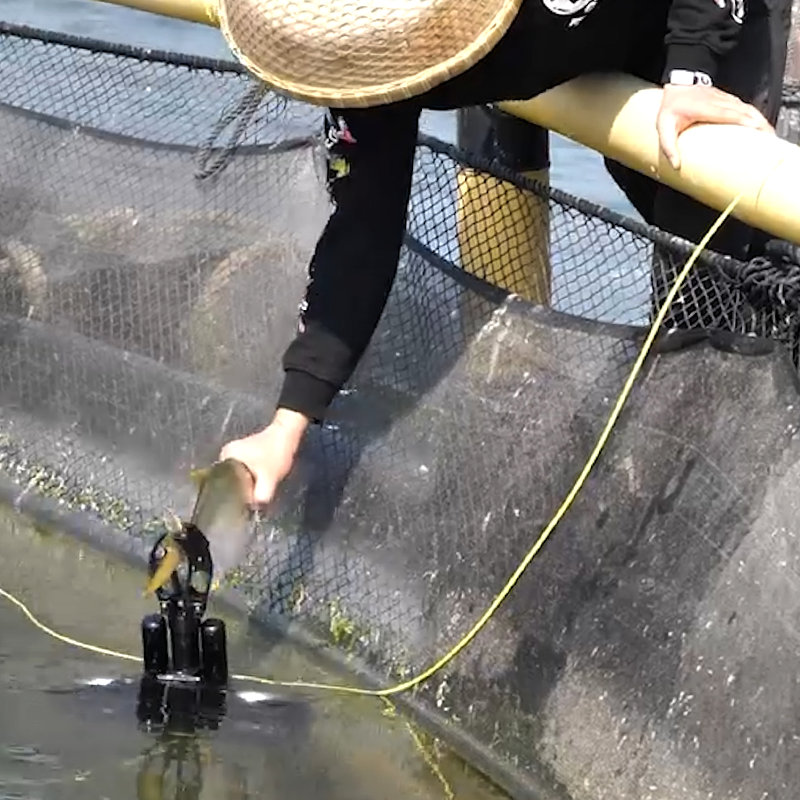

Retrieve, move and recover underwater objects with power and precision,
through a clamping force of 100N.





Compact, Rugged & Functional

The small but powerful robotic arm delivers a clamping and towing force of 100N, is capable of retrieving large and heavy objects and is beneficial across a wide range of applications.



Superior Power & Precision

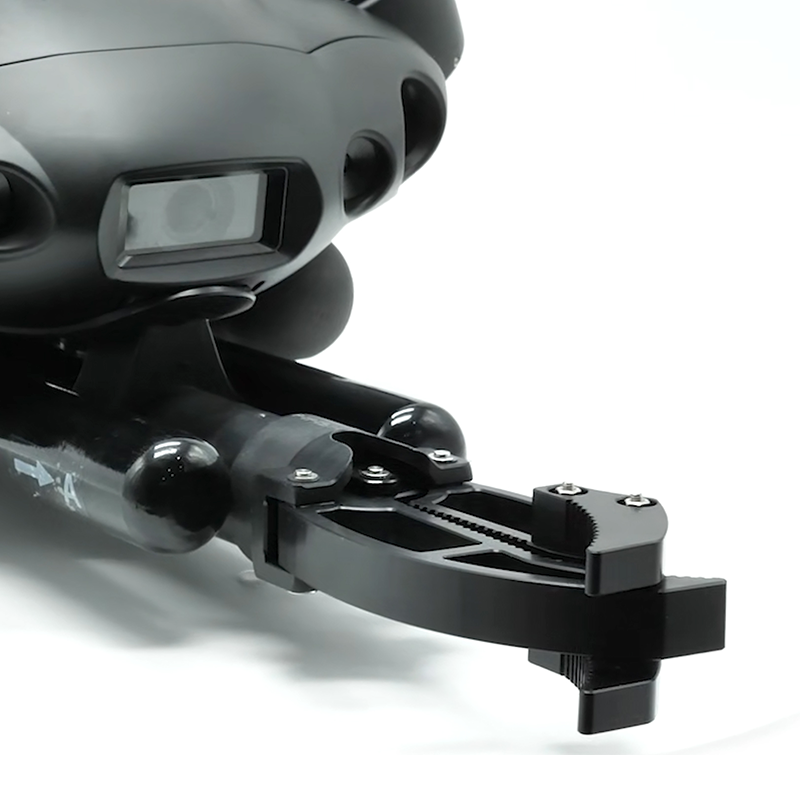

FIFISH’s robotic arm the operational concepts of compact ROVs. Drag, drop, tow, and salvage objects with the neutrally buoyant robotic arm and rugged tether cable. Operate with stable & precise control, with an optimal viewing zone.





Boost Your Underwater Capabilities

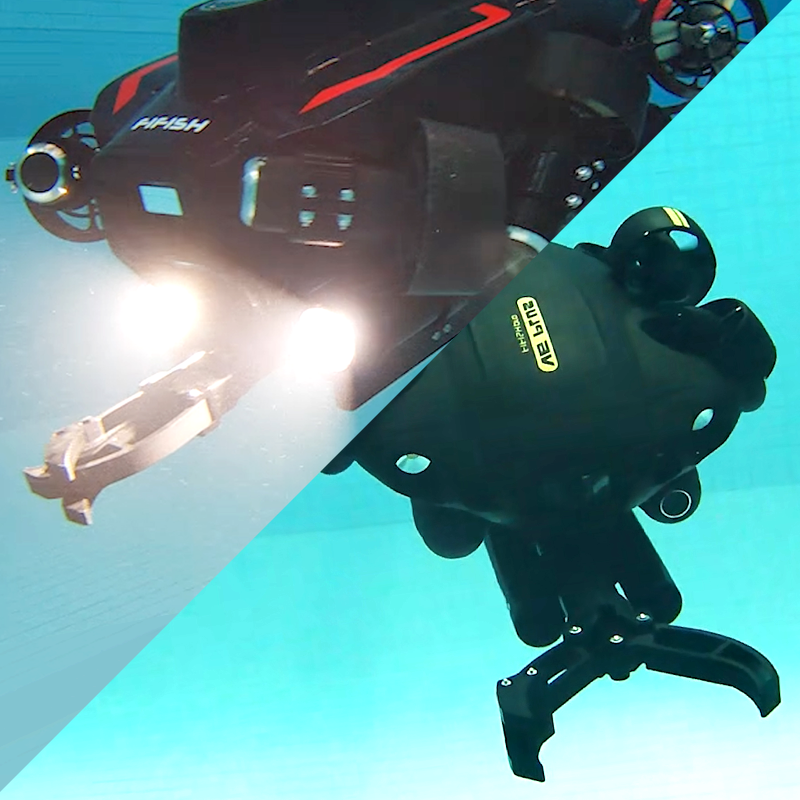

With an additional pair of durable flat grippers, objects of all shapes and sizes -whether flat, curved or angled- can be retrieved and recovered with ease.







Specifications

ITEM SPEC.
Depth Rating V6 Series | 150m
W6 Version | 350m
Maximum Power Consumption V6 Series | 2A@12V
W6 Version |2A@24V
Input Voltage V6 Series | 9V-13V DC
W6 Version | 9V-26V DC
Maximum Clamping Force 100N
Operation Temperature -10 to 60℃
Maximum Grip Dimension V6 Series | 120mm
W6 Version | 125mm
Claw Three Fingers
Communication V6 Series | UART
W6 Version | Ethernet
Buoyancy System Neutral Buoyancy
Which FIFISH ROV model is the add-on tool compatible with?

This add-on tool is compatible with the following FIFISH Underwater Robots:

  • – FIFISH V6 EXPERT

------------------------

  • – FIFISH PRO V6 PLUS
  • – FIFISH PRO W6
